Stranded Aluminium Conductor Cable Sunlight Resistant For Underground Service Entrance
APPLICATION
- Power Distribution Networks
- Building and Construction
- Commercial/Residential Wiring
- High-Rise Buildings
- Industrial Facilities
- Heavy Machinery Power Supply
- Renewable Energy Systems
- Transportation Infrastructure
- Railways and Airport
- EV Charging Stations
CHARACTERISTIC
- Voltage Rating Uo/U: 3.6/6(7.2)kV, 6/6(7.2)kV, 6/10(12)kV, 8.7/10(12kV), 8.7/15(17.5)kV, 12/20(24)kV,18/30(36)kV, 21/35(40.5)kV, 26/35(40.5)kV
- Maximum operating temperature of conductor:+90℃
- Operating ambient temperature: -15℃~+55℃
- Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
- Minimum Bending Radius: Single Core 15D Three Core 12D (D is the actual outer diameter of the cable)
CONSTRUCTION
- Conductor{Round compacted conductors
- Conductor Shield: Semi conductive shielding material (below 500mm)Semi conductive tape+semi conductive shielding material (500mm and above)
- Insulation: Polyvinyl chloride (PVC)
- Insulation Shield: Peelable semiconducting shielding material
- Metal Shield Layer: Copper Tape Copper Wire(35kV 500mm above)
- Filler: Polypropylene(PP) mesh filling rope
- Binder Tape: Non hygroscopic straps
- Armouring: Steel Tape(Single core) Galvanized steel tape(3 core)
- Outer sheath: 90℃ Polyvinyl chloride (PVC)
SPECIFICATION
YJLHV62 YJLHV22-6/10kV Cable Structure Parameters
| Specs
mm² | Conductor diameter
mm | Outer thickness of insulation
±1.0mm | Approx outer diameter of cable
mm | Approx cable weight
kg/km | | Specs
mm² | Conductor diameter
mm | Outer thickness of insulation
±1.0mm | Approx outer diameter of cable
mm | Approx cable weight
kg/km |
| 1×25 | 6.0±0.1 | 15.6 | 23.1 | 687 | 3×25 | 6.0±0.1 | 15.6 | 44.1 | 2256 |
| 1×35 | 6.6±0.2 | 16.2 | 23.7 | 756 | 3×35 | 6.6±0.2 | 16.2 | 45.4 | 2487 |
| 1×50 | 7.6±0.2 | 17.2 | 24.9 | 849 | 3×50 | 7.6±0.2 | 17.2 | 48.1 | 2866 |
| 1×70 | 9.2±0.2 | 18.8 | 26.5 | 963 | 3×70 | 9.2±0.2 | 18.8 | 51.9 | 3303 |
| 1×95 | 10.9±0.2 | 20.5 | 28.3 | 1103 | 3×95 | 10.9±0.2 | 205 | 55.8 | 3762 |
| 1×120 | 122±0.2 | 21.8 | 29.6 | 1224 | 3×120 | 12.2±0.2 | 21.8 | 58.9 | 4222 |
| 1×150 | 13.6±0.2 | 23.2 | 31.2 | 1371 | 3×150 | 13.6±0.2 | 232 | 62.1 | 4701 |
| 1×185 | 152±0.2 | 24.8 | 328 | 1536 | 3×185 | 152±0.2 | 248 | 65.9 | 5322 |
| 1×240 | 17.4±0.2 | 27.0 | 36.5 | 1788 | 3×240 | 17.4±0.2 | 27.0 | 71.2 | 6222 |
| 1×300 | 19.5±0.2 | 29.1 | 38.7 | 2401 | 3×300 | 19.5±0.2 | 29.1 | 76.2 | 7154 |
| 1×400 | 22.0±0.2 | 31.6 | 41.6 | 2845 | 3×400 | 22.0±0.2 | 31.6 | 83.3 | 9321 |
| 1×500 | 24.8±0.2 | 35.2 | 45.4 | 3332 | 3×500 | 24.8±0.2 | 35.2 | 91.6 | 10998 |
| 1×630 | 282±0.2 | 38.6 | 49.1 | 3913 | 3×630 | 282±0.2 | 38.6 | 99.8 | 13005 |
| 1×800 | 34.0±0.2 | 44.4 | 55.1 | 4704 | | | | |
|
ABOUT US

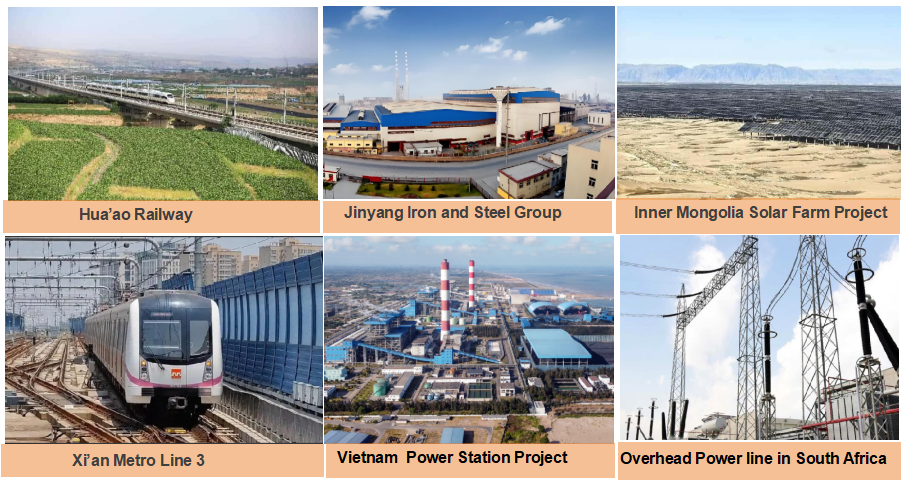

PROJRCTS
PARTNER
APPLICATION
FAQ
Q. Can These cables be used for DC systems?
A. Yes, but DC-rated XLPE insulation is required to prevent space charge accumulation. Standard AC cables may degrade under long-term DC voltage.
Q. What is the typical lifespan of these cables in underground installations?
A. 30+ years with proper installation (e.g., sand bedding, moisture-proofing). PVC sheath resists chemical corrosion in soil.
Q. Are these cables suitable for offshore wind farms?
A. Yes, but corrosion-resistant outer layers (e.g., PE instead of PVC) are recommended for saltwater environments.
Q.. What’s the weight advantage of alumium cable vs. copper cables?
A. A 150mm² YJLHV62 weighs ~2.5kg/m, while a copper equivalent weighs ~4kg/m, reducing structural load.
Q. Is this cable suitable for high-vibration environments?
A. Yes. Steel armor absorbs mechanical stress, but vibration dampers are advised for long-term use.
