High Voltage Bare Copper Overhead Conductor Solid Flexible 10~185mm2

Name: High Voltage Bare Copper Overhead Conductor Solid Flexible 10185mm2
Brand: Zhongdong
Price: 1 USD

Brand Name : Zhongdong

Certification : CCC,IEC,VDE,TUV,ISO

Place of Origin : Hebei，China

MOQ : Negotiable

Price : Negotiable

Payment Terms : ,L/C,T/T

Supply Ability : 500KM/Week

Delivery Time : 7-30 days based on different Qty

Packaging Details : Wooden Drum

Range Of Application : Overhead Transmission

Material : Coppper

Drum Packing : Steel Wooden Drum

Per Drum Weight : As per request

Voltage : up to 110KV

Product : Bare conductor

Contact Now

Solid Flexible Copper Bare Conductor Electric Grounding Cable Bare Copper Wire

Application

This high voltage bare copper conductor is used in overhead power transmission lines. It can also be used as bus line in power stations or other applications where high current carrying capacity is required.

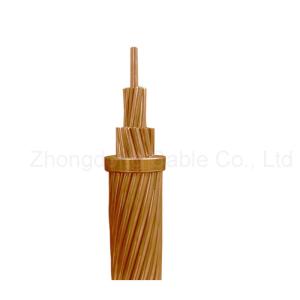

High Voltage Bare Copper Overhead Conductor Solid Flexible 10~185mm2

Descripction

Conductor: stranded hard drawn copper
No. of strands: 3, 7, 19, 37
Conductor shape: round
Lay direction of outer layer: right
Conductor specification

Specification

Nominal Area (mm2)	Construction (No./mm)	Overall Dia. (mm)	Approx. weight (kg/km)	Max. DC Resist. @ 20ºC (Ω/km)	Min. Breaking Load (N)
10	7/1.35	4.05	89.82	1.829	3752
14	7/1.60	4.80	126.2	1.303	5267
16	3/2.65	5.70	148.3	1.106	6194
16	7/1.70	5.10	142.4	1.154	5946
25	7/2.10	6.30	217.3	0.7563	9073
32	3/3.75	8.06	296.9	0.5520	12400
32	7/2.46	7.38	298.2	0.5497	12442
35	7/2.50	7.50	308.0	0.5337	12860
50	7/3.00	9.00	443.5	0.3706	18520
50	19/1.80	9.00	435.8	0.3819	17700
70	7/3.55	10.65	621.1	0.2646	25930
70	19/2.10	10.50	593.2	0.2806	24090
95	19/2.50	12.50	840.7	0.1980	34140
100	7/4.30	12.90	911.2	0.1810	36540
120	19/2.80	14.00	1055	0.1578	42830
125	19/2.90	14.50	1131	0.1471	45940
150	19/3.20	16.00	1377	0.1208	55940
150	37/2.25	15.75	1334	0.1264	53880
185	19/3.55	17.75	1695	0.09815	68860
185	37/2.50	17.50	1647	0.1024	66490
